Flexible, type-tested modular switchboards for complex installations

Request a Quote
Cubic Modular 8

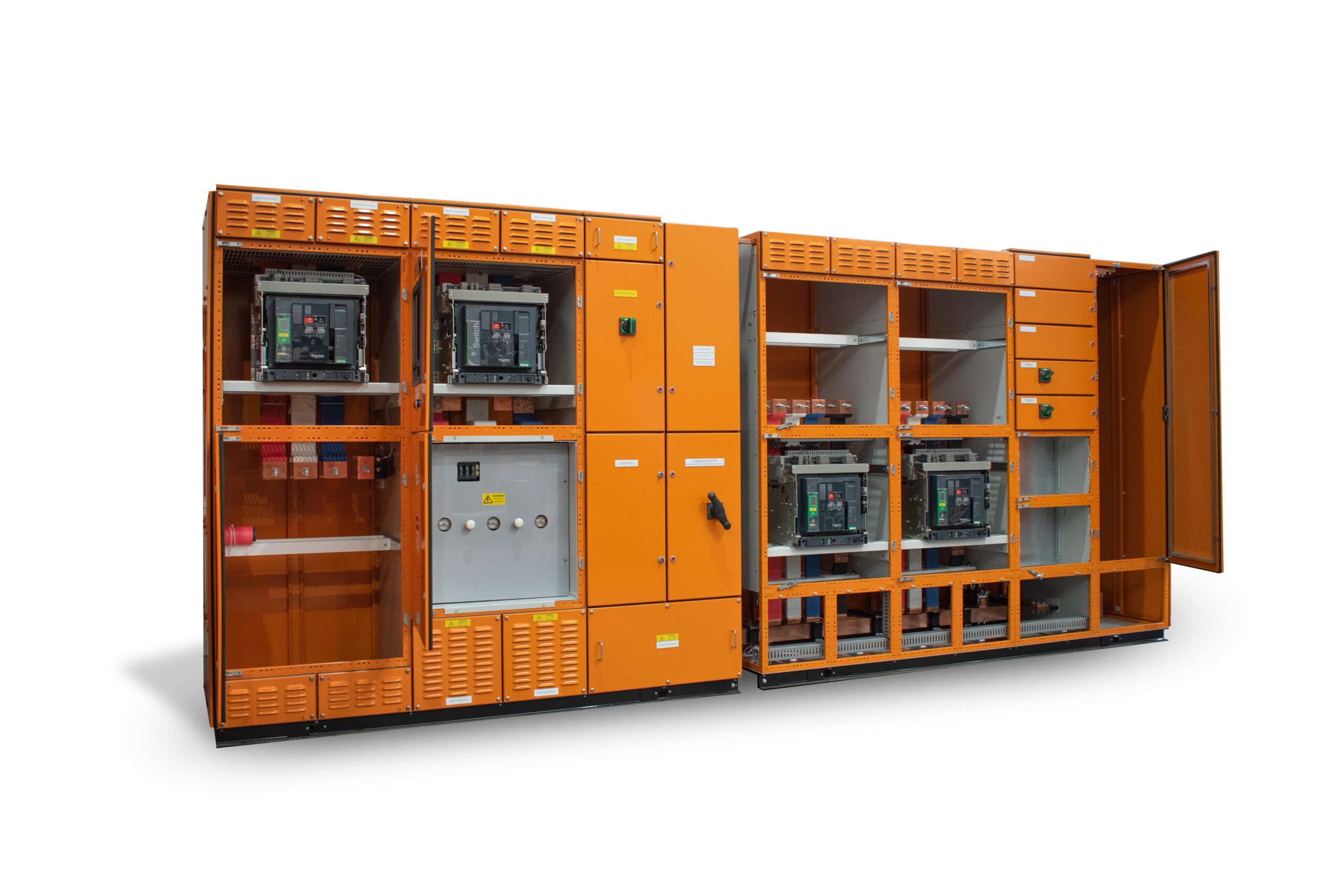

Cubic Modular 7
Cubic Modular 6

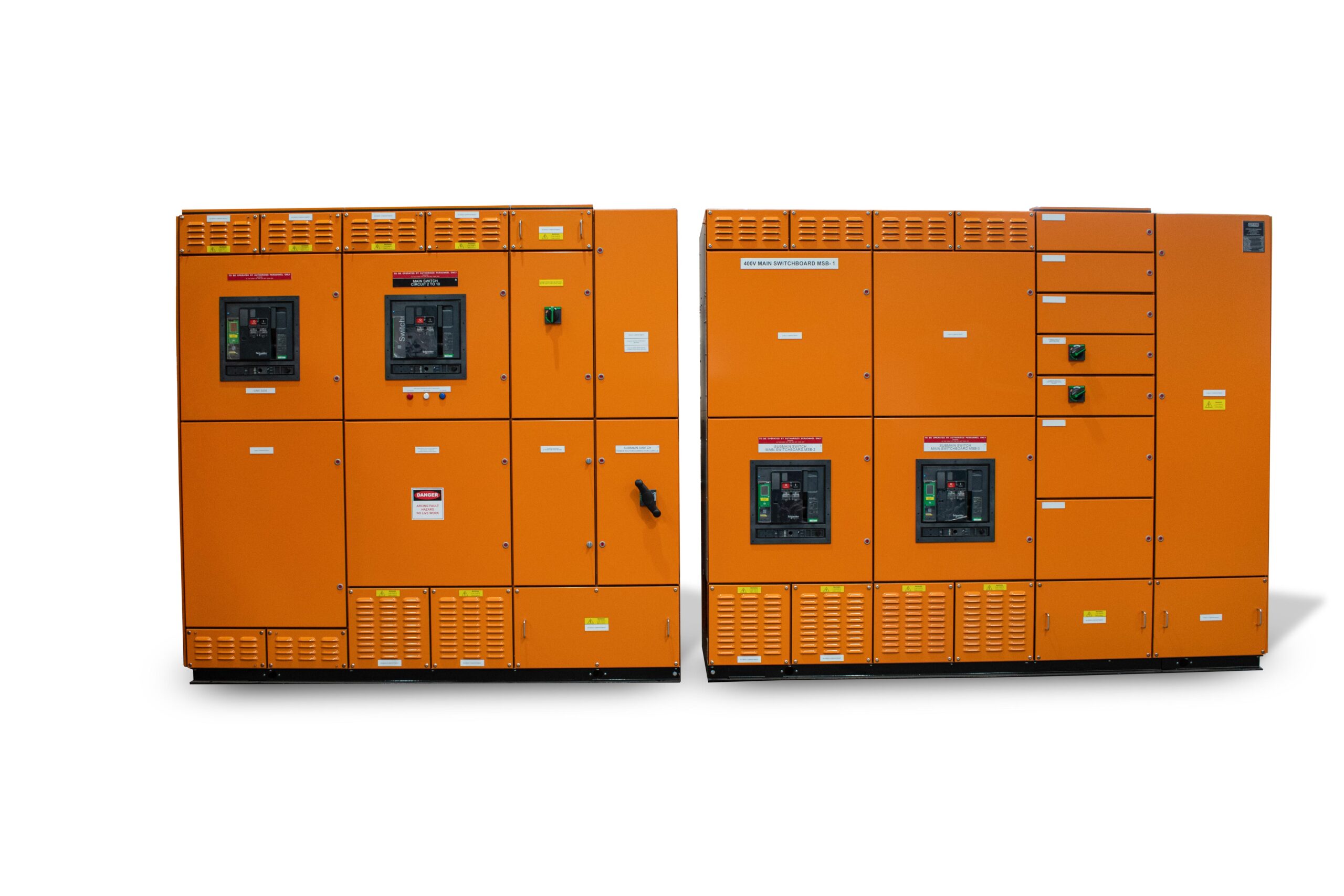

Cubic Modular 5

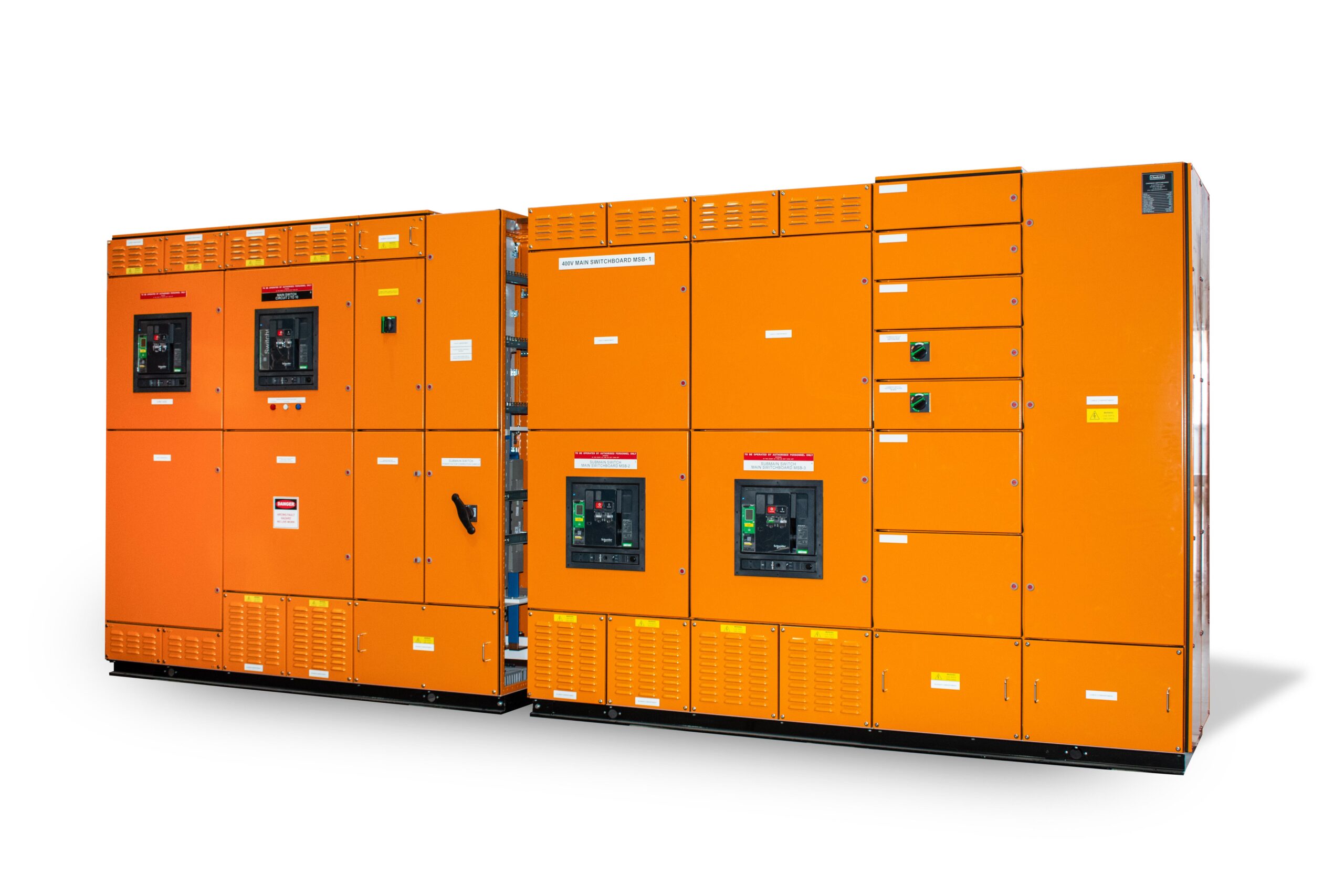

Cubic Modular 4

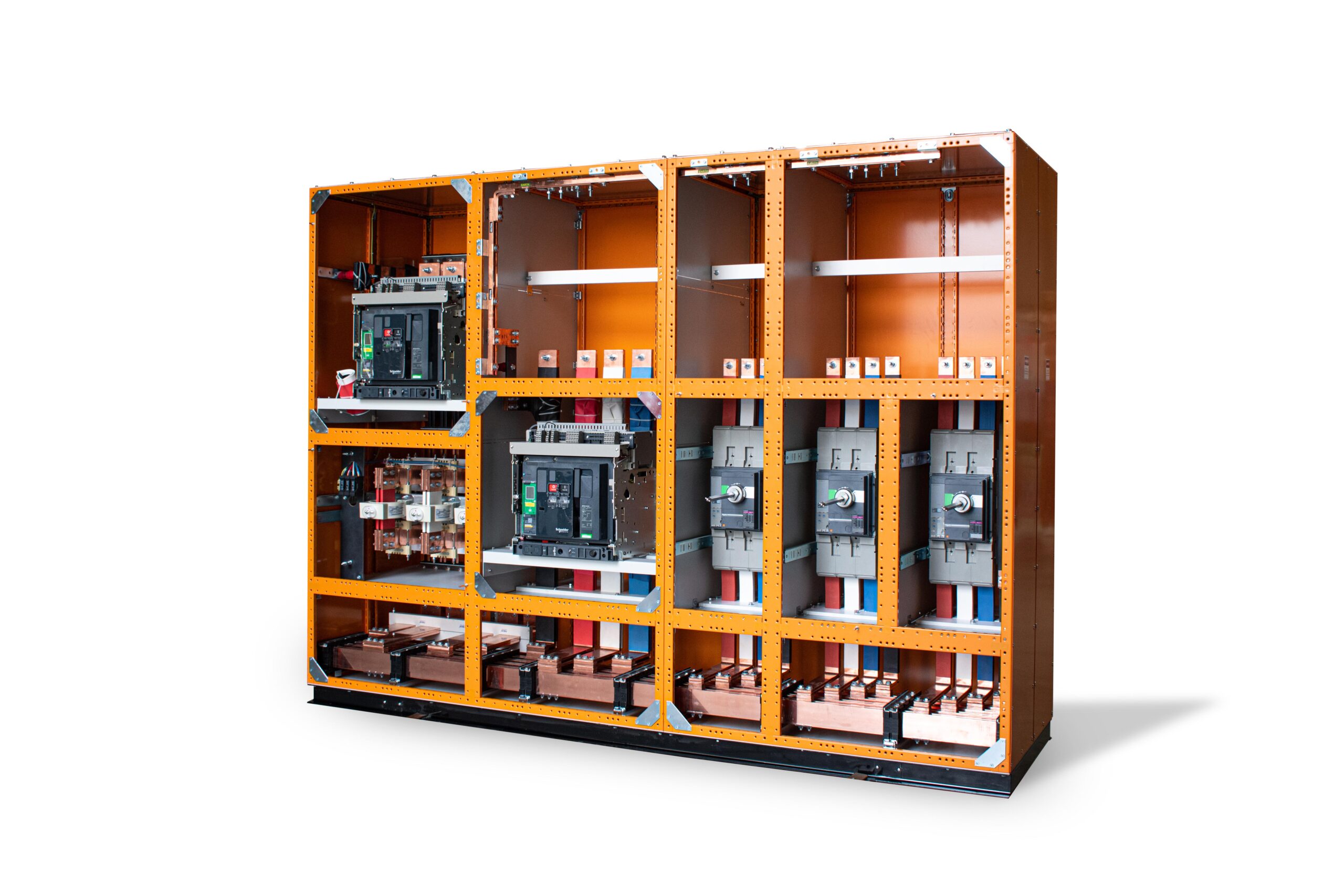

Cubic Modular 3

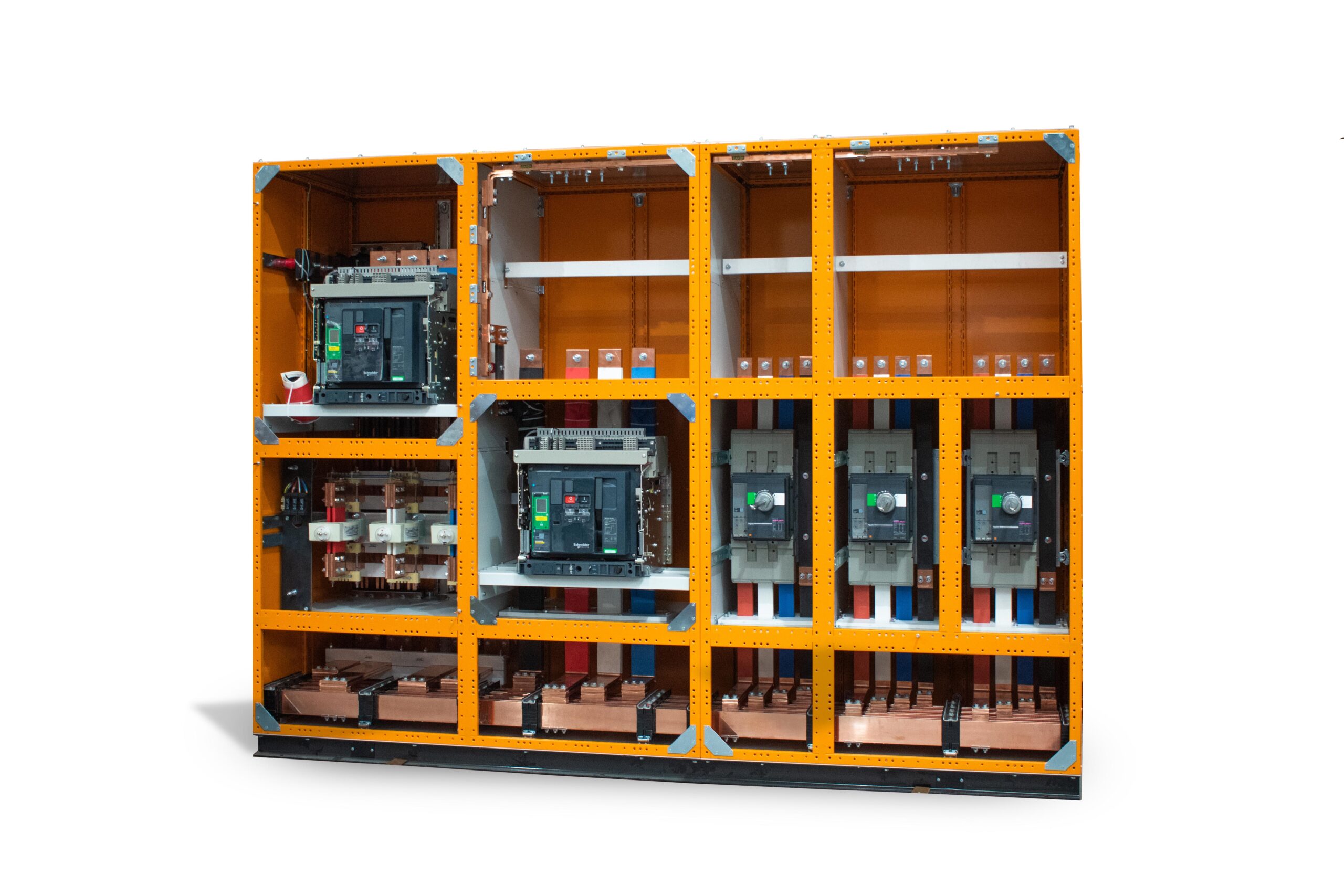

Cubic Modular

Overview

Cubic modular switchboards are designed to adapt to your project — not the other way around. Built using a flexible modular system, these switchboards allow complete customisation in tiering, busbar configuration, access points, and cable entry layouts.

As a trusted partner of the CUBIC modular system, Chadwick manufactures and assembles these boards in-house to meet exact client specifications and Australian standards. The result is a high-performance, low voltage switchboard that’s engineered for safety, serviceability, and long-term durability.

Modular switchboards are ideal for projects requiring complex layouts, high uptime, or future upgradeability — including commercial buildings, transport infrastructure, defence, and data centres.

Industry Applications

CommercialDefenceIndustrialTechnology & Data CentresTransport & Infrastructure

Need help selecting the right product?

Talk to our engineering team to find the right board for your sector.

Request a Consultation
  • NESMA Member
  • Built to Australian Standards
  • Service & Support Available

FAQs

How long does it take to manufacture a switchboard?

Lead times vary depending on the complexity of your board and current production capacity. Standard boards can be completed in 2–4 weeks, while fully custom solutions may take 6–8 weeks. For urgent requirements, speak with our team — we’ll do our best to accommodate your timeline.

Do you offer site inspections or on-site switchboard modifications?

Yes. Our technicians regularly attend shutdowns and site visits for maintenance, upgrades, or compliance modifications. We also offer thermal imaging and grading studies as part of our service options.

Can Chadwick supply switchboards for projects outside NSW?

Absolutely. We supply to VIC, QLD, ACT, and other regions nationally. Freight, crating, and delivery options can be discussed during quoting to ensure safe and timely arrival.

Are your switchboards built to Australian standards?

Yes — our boards are engineered in alignment with AS/NZS 61439 standards and built in accordance with NESMA best practices. If you require project-specific compliance documentation, we’re happy to provide it.

Do you offer spare parts or support for non-Chadwick boards?

We do. Our team can help source or recommend compatible components and provide alternatives if your original parts are obsolete or discontinued.

Can I send through drawings or specs for a custom quote?

Yes — we encourage it. You can upload drawings directly through our quote request form or email them to [email protected]. Our estimators will get back to you promptly.

Technical Summary

  • Rated Voltage: Up to 690V AC

  • Rated Current: Up to 6300A

  • Rated Short-Time Withstand Current (Icw): 50–100kA for 1 sec

  • Enclosure Protection: IP42, IP54, or IP66

  • Form of Separation: Form 1 to Form 4b

  • Construction System: Modular CUBIC-certified system

  • Standards Compliance: AS/NZS 61439, IEC 61439, AS/NZS 3000

  • Mounting Configuration: Floor-standing, front/rear access

  • Busbar System: Horizontal or vertical, fully shrouded

  • Cooling: Natural ventilation or forced air (optional)

  • Paint Finish: Powder-coated RAL7035 or as specified
